Neox Metal

Built for the heavy lifting.

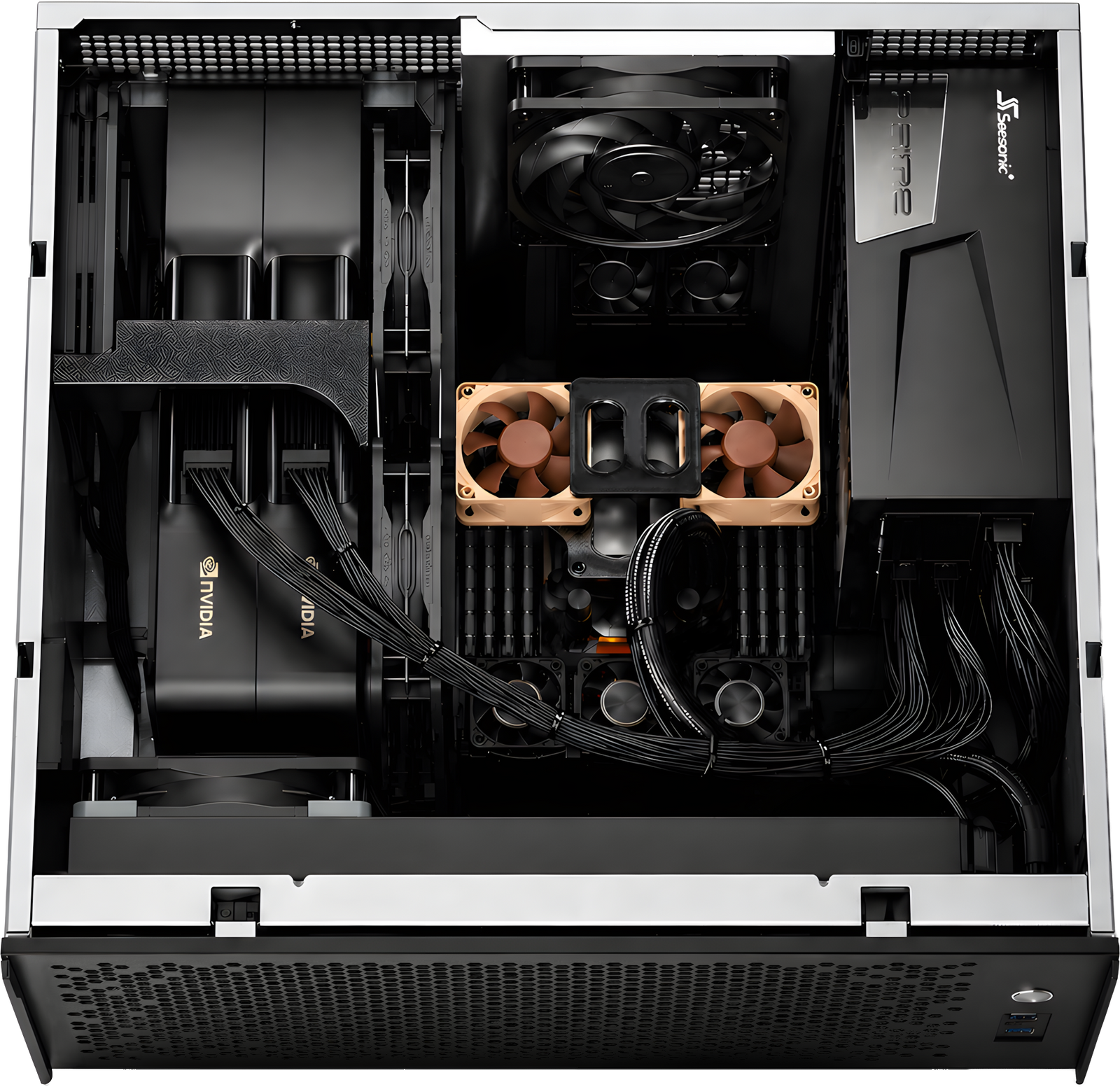

Neox Metal 4U server top-down view: dual NVIDIA GPUs, Noctua air cooler, AIO radiator and Seasonic PSU

Engineered for sustained, around-the-clock workloads, Metal delivers workstation-class performance in a 4U rack-mount form factor built for AI training, large-model inference and production rendering.

Configure
DDR5 ECC server memory module

Massive memory bandwidth

High-capacity ECC memory for AI datasets, simulation and heavy workloads.

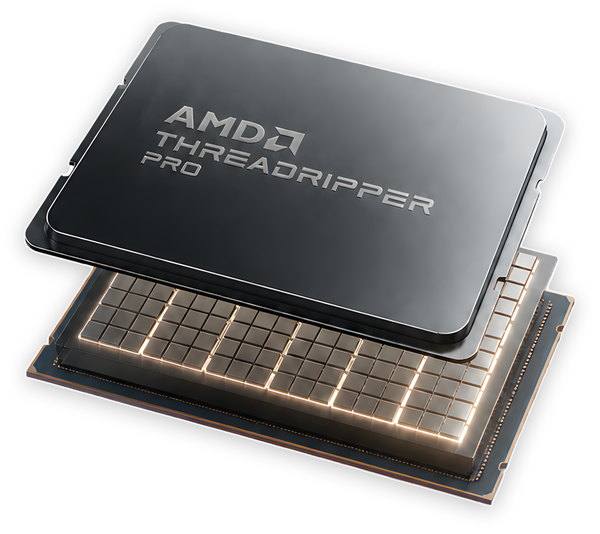

AMD Threadripper processor

Up to 96 cores

AMD Threadripper compute that scales with your work.

Performance, by the workload.

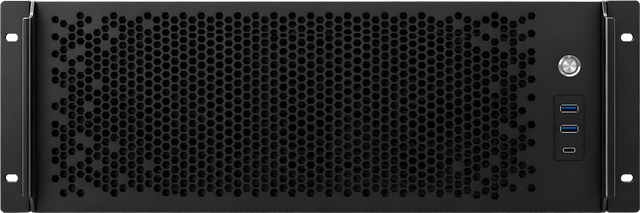

Neox Metal 4U chassis front view

Tuned for AI, rendering and creators. Metal delivers production-grade throughput across large-model inference, 3D rendering and post-production.

4x NVIDIA RTX PRO 6000 Blackwell 96GB
x
2x NVIDIA RTX 5090 32GB
Apple Mac Studio M3 Ultra 512GB
Apple Mac Mini M4 Pro 64GB

Runs the latest open-weight models locally. Llama 4, DeepSeek V4, Qwen3.5, GLM-5.2 and Mistral all run entirely on your own hardware, with no API costs and full data privacy.

What to consider when choosing your model.

Configure your setup in the next step.

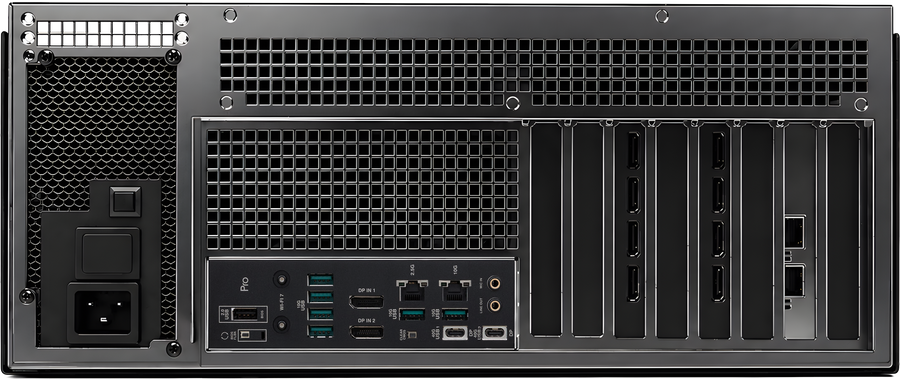

Neox Metal 4U chassis rear view

Processor

Choose your Threadripper based on how parallel your workload runs.

  • 24-core for AI inference and creator pipelines
  • 96-core for training, scientific compute and heavy render farms

Graphics

Scale graphics from a single RTX 5090 up to four RTX PRO 6000 Max-Q in the same chassis.

  • RTX 5090 (32GB) for inference and creator pipelines
  • Up to 4x RTX PRO 6000 Max-Q (96GB each) for large-model training and 8K production

Memory

DDR5 ECC RDIMM memory engineered for sustained workloads and data integrity in long-running training jobs.

  • ECC error correction protects model weights and renders across multi-day sessions
  • Metal can be configured with up to 1TB of registered DDR5 memory

Storage

Multi-bay NVMe storage for datasets, model checkpoints and high-bitrate render output.

  • U.2 / M.2 NVMe across hot-swappable bays for capacity and throughput
  • Metal can be configured with up to 32TB of NVMe storage

Finish

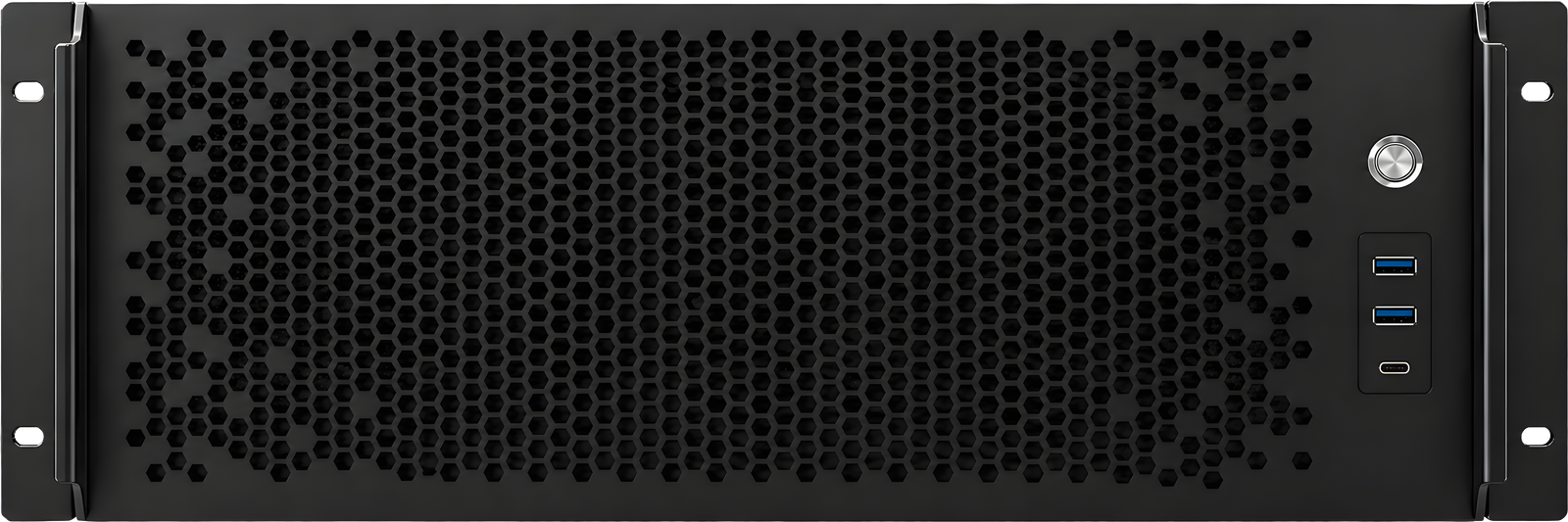

Neox Metal 4U chassis front view

Black

Model

Neox Metal

  • One model, configured to your workload. 4U rack-mount workstation built for AI training, inference and production rendering. Pairs AMD Threadripper compute with NVIDIA RTX graphics in a chassis engineered for sustained 24/7 deployment, scaling up to multi-GPU configurations.
  • Form factor: 4U rack-mount
  • Rack width: 48.3 cm (19 inches, EIA standard)
  • Chassis dimensions (DxWxH): 431.80 x 431.80 x 176.78 mm (17 x 17 x 6.96 inches)
  • Chassis weight: 8.39 kg (18.5 lbs), unpopulated
Processor

AMD Threadripper™ 9000 Series

  • Zen 5 architecture, up to 8-channel DDR5
  • Up to 128 PCIe 5.0 lanes

Choose your core count

  • Threadripper 9000 (HEDT): 9960X, 9970X or 9980X
  • Threadripper PRO 9000WX: 9965WX, 9975WX, 9985WX or 9995WX
  • From 24 cores / 48 threads up to 96 cores / 192 threads
Graphics

NVIDIA Blackwell graphics

  • PCIe 5.0, GDDR7 memory across the lineup

RTX 5090

  • 32GB GDDR7
  • 21,760 CUDA cores, 680 Tensor cores
  • Up to 2x in chassis (64GB total VRAM)

RTX PRO 6000 Max-Q

  • 96GB GDDR7 with ECC per card
  • 24,064 CUDA cores, 752 Tensor cores per card
  • Single-slot form factor
  • Up to 4x in chassis (384GB total VRAM)
Memory

DDR5 ECC RDIMM

  • Up to 8-channel registered DDR5
  • ECC error correction for sustained workloads

128GB to 1TB

  • 128GB, 256GB or 512GB
Motherboard

GIGABYTE TRX50 AI TOP

  • 16+8+4 phase digital VRM, 14-layer server-grade PCB
  • 8x DDR5 ECC RDIMM (8-channel) up to 2TB
  • 4x PCIe 5.0 x16 slots, 4x PCIe 5.0 M.2 NVMe
  • Dual 10GbE LAN, Wi-Fi 7, dual USB4 Type-C
  • Pairs with AMD Threadripper or Threadripper PRO
Cooling

CPU

  • NX 836SA-M1 360mm AIO liquid cooler

Chassis airflow

  • Noctua NF-A12x25 Chromax fans (3 front, 1 rear)
  • Front-to-back airflow tuned for sustained full-load
Storage

NVMe PCIe 5.0

  • M.2 NVMe boot drive
  • U.2 / M.2 hot-swappable bays for capacity

2TB to 32TB

  • Scale capacity in 2TB / 4TB / 8TB tiers
Power Supply

Seasonic Prime-PX 80+ Platinum

  • 1600W or 2200W, sized to GPU configuration
  • Server-grade output for sustained multi-GPU load
Display Support

4x DisplayPort 2.1 per GPU

  • 8K at 60Hz per output
  • 4K at 240Hz per output
  • Scales with GPU count, up to 16 displays in 4-GPU configurations
Connectivity

Front panel I/O

  • 1x USB-C 3.2 Gen 2 (10Gb/s)
  • 2x USB-A 3.0
  • Illuminated power button with status LED

Network

  • Onboard dual 10Gb Ethernet
  • Expansion slots support 25GbE SFP28, 100GbE QSFP28 and dual-port SFP+ NICs
  • Wi-Fi 7 (802.11be) optional
Operating System

Choose your OS

  • Windows 11 Pro
  • Ubuntu LTS
  • No OS (bring your own)

Ready to use

  • Pre-configured on arrival: OS installed and activated, drivers in place and fan profiles tuned for the workload.
Compliance

Industry standards

  • EIA-310-D (19-inch rack standard)
  • IEC 60297-1 / IEC 60297-3-100
  • CEA-310-E
  • DIN 41494

Materials

  • UL listed wire, fans, coolers and materials where possible

Regulatory

  • Chassis cannot be certified as a standalone item. FCC, CE, UL, IEC and other safety / regulatory certifications are sought as a fully integrated system. Contact us for compliance documentation on configured units.
