Extensions
Extensions are professional-grade add-on cards that expand your build's connectivity beyond what's built into the motherboard. Most setups don't need them. For pro workflows that demand high-bandwidth networking or specialised I/O, this is how you add it.
Ethernet (RJ45)
Adds copper-cabled Ethernet ports for faster wired connections than the onboard adapter provides. The right choice for a network that runs over standard Cat6 or Cat6a cabling.
Fibre / DAC
SFP and QSFP cards plug into fibre or short-run direct-attach cables, scaling speeds from 10G up to 100G. The right path for connecting to a data center switch, NAS or high-bandwidth uplink.
Pick what your existing network already requires. RJ45 if your switch and cabling are copper, SFP family if you're plugging into a fibre uplink.
Helper
Configurator Assistant
Use our automated assistant to help create your ideal setup.
1. What will you primarily use your machine for?
2. What level of performance are you aiming for?
Your configuration has been applied successfully!
Landing
Built by the best, for the best.
Precision engineered.
We build systems you can rely on. Precisely tuned and thoroughly tested, they deliver the performance and dependability you need.
Neox Protect.
Expert support and enhanced coverage ensure your peace of mind with dedicated assistance and comprehensive warranty benefits.
Cooling
Cooling on Neox Metal is engineered for sustained full-load operation. A 360mm liquid cooler handles the CPU, paired with Noctua chassis and RAM fans driving consistent front-to-back airflow across every component.
NX 836SA-M1 360mm AIO
Liquid cooling for the CPU. Three-fan radiator with the surface area to keep up to 96-core Threadripper PRO chips at sustained full load without thermal throttling.
Noctua NF-A12x25 Chromax
Four chassis fans (three front-mounted intakes and one rear exhaust) drive cool air across the GPUs and out the back. Among the quietest 120mm fans available, even at high RPM under load.
Noctua NF-A6x25 RAM cooling
Two 60mm fans on a custom bracket sit directly over the DDR5 RDIMM modules, keeping memory cool under heavy load. The kind of detail you only need when the system runs flat out for hours.
Graphics
NVIDIA Blackwell graphics across two paths. RTX 5090 for the fastest consumer card on the market. RTX PRO 6000 Blackwell Max-Q for the workstation flagship, with three times the memory and ECC for production. Up to two 5090s or three PRO 6000s in a single chassis.
RTX 5090
32GB of memory. The fastest consumer card available. Ideal for single-user creative work, rendering and AI experimentation.
RTX PRO 6000 Blackwell Max-Q
96GB of ECC memory per card. The slim form factor lets you stack three for a combined 288GB of memory, the build for serious AI training, large-model inference and any production work where data integrity matters.
Memory
Neox Metal runs on production-grade ECC memory, the same kind used in data center servers. ECC silently corrects errors that would otherwise corrupt long-running work, the difference between a render finishing clean and a 12-hour job ending in garbage.
Capacity
128GB to 1TB. 128GB handles most rendering and compilation. 256GB and above unlocks larger AI models, big simulations and heavy data sets. 1TB is reserved for the most memory-hungry work.
Bandwidth
PRO doubles memory bandwidth, useful for CPU-heavy AI work and scientific simulation. Most GPU-driven jobs don't need it.
Motherboard
Both motherboards are ASUS Pro WS workstation boards, validated for Threadripper deployment.
ASUS Pro WS TRX50-SAGE WIFI
Pairs with Threadripper or Threadripper PRO. The right board when you need a workstation-grade foundation without going all the way to the flagship platform.
ASUS Pro WS WRX90E-SAGE SE
Pairs with Threadripper PRO. The flagship board, sized for multi-GPU AI builds and any workload that genuinely benefits from full professional bandwidth and expansion.
Power
Neox Metal uses Seasonic PRIME PX series supplies, the same line deployed in production servers and high-end workstations. Both options are 80+ Platinum certified for sustained efficiency under load.
PRIME PX-1600 (1600W)
Sized for a single RTX 5090, or up to two RTX PRO 6000 Max-Q. Comfortable headroom for any Threadripper paired with these configurations.
PRIME PX-2200 (2200W)
Required for dual RTX 5090 builds and for any three-GPU configuration. Also the right call when you want maximum headroom for transient peak draws under sustained training or rendering load.
Processor
Neox Metal is built around AMD Ryzen Threadripper and Threadripper PRO. Up to 96 cores in a single chassis, with the kind of horsepower that turns multi-hour renders, simulations and training runs into something you can finish before lunch.
Threadripper
From 24 to 64 cores. A strong all-rounder for content creation, 3D rendering and any work that scales with more cores.
Threadripper PRO
Up to 96 cores, designed for multi-GPU AI training and round-the-clock production work. The build for workloads that genuinely don't stop.
Storage
All NVMe storage, the fastest class of drive available. Boot drive plus dedicated capacity bays. From 2TB up to 32TB to match the size of your data, models or render assets.
Boot drive
A high-endurance NVMe drive handles the operating system and active project data. Instant boot, instant model loads.
Capacity tier
For larger data sets, the chassis adds dedicated capacity bays scaling up to 32TB, giving you room to keep training datasets, model weights and render archives on the system without offloading.
Shipping
Case Specification
Neox Metal
| Model | Neox Metal | ||
|---|---|---|---|
| Color | Black | ||
| EAN Barcode | |||
| Case Form Factor | 4U Rack-mount | ||
| Dimensions (DxWxH) | 431.80 x 431.80 x 176.78 mm | ||
| Volume | 33 L | ||
| Weight | 8.39 kg unpopulated | ||
| Material | Steel | ||
| Front Ports | 1x USB-C 3.2 Gen 2, 2x USB-A 3.0 | ||
| Rack Width | 48.3 cm (19 inch EIA standard) | ||
| Model | Neox Metal |
| Color | Black |
| EAN Barcode | |
| Case Form Factor | 4U Rack-mount |
| Dimensions (DxWxH) | 431.80 x 431.80 x 176.78 mm |
| Volume | 33 L |
| Weight | 8.39 kg unpopulated |
| Material | Steel |
| Front Ports | 1x USB-C 3.2 Gen 2, 2x USB-A 3.0 |
| Rack Width | 48.3 cm (19 inch EIA standard) |
Neox
Metal

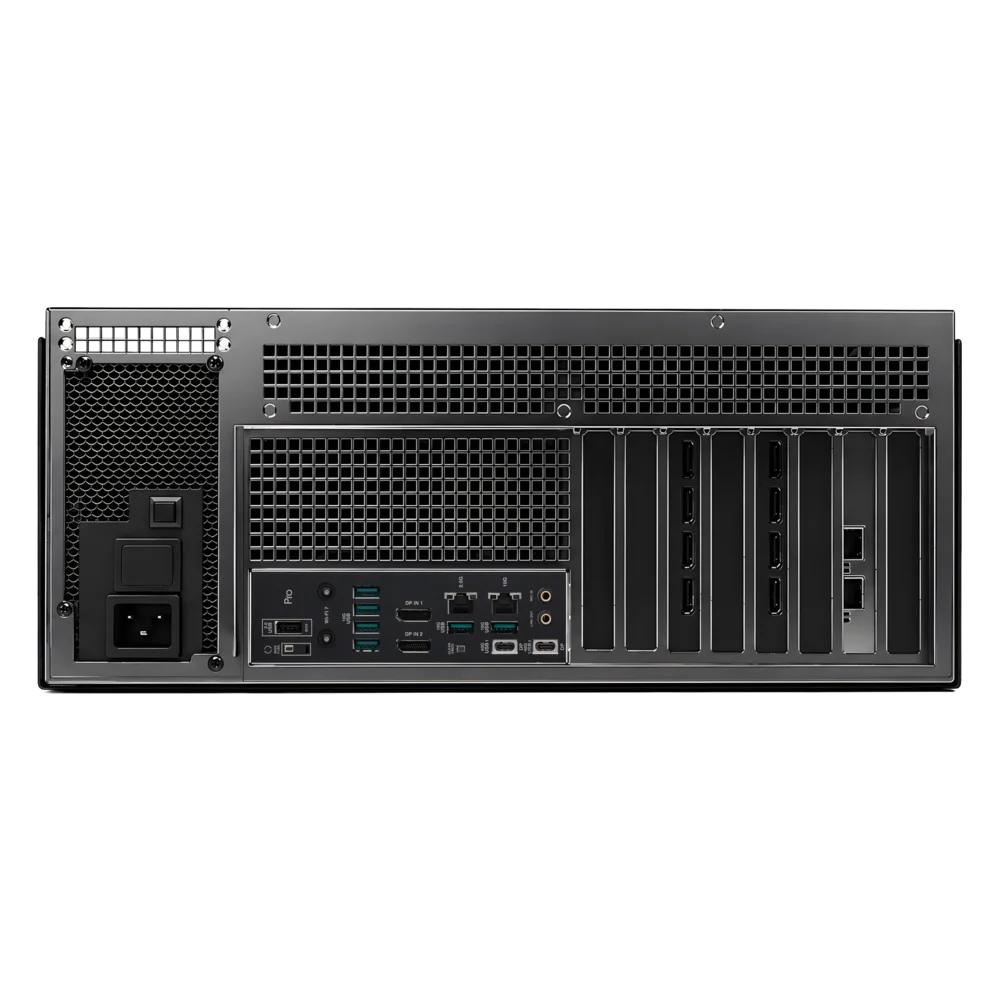

Neox Metal. Built for relentless work. An all-steel 4U rack chassis pairs precision-tuned front-to-back airflow with server-grade power delivery. Built to run, around the clock.
- Dimensions: 43.18 x 43.18 x 17.68 cm (33 L)
- Case Weight: 8.39 kg
-
I/O: USB-C 3.2 Gen 2, 2x USB-A 3.0
