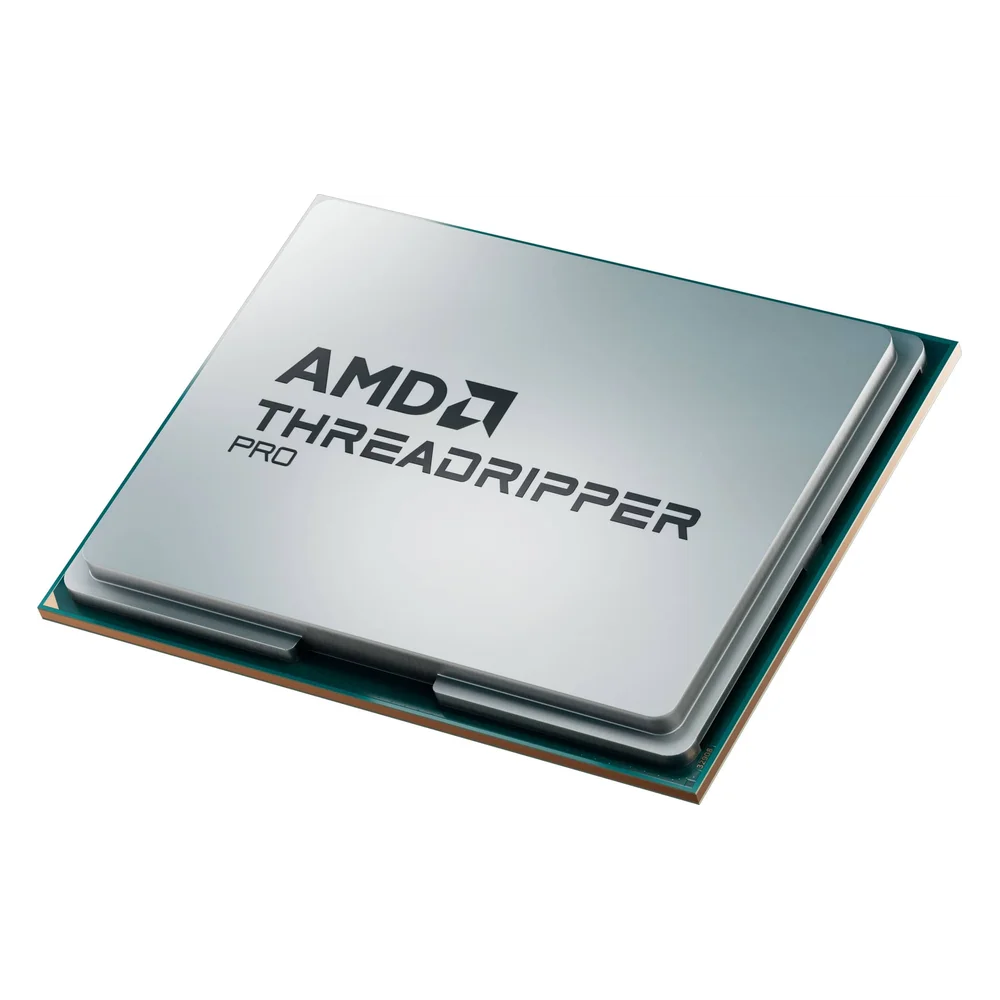

AMD Ryzen Threadripper PRO 9995WX (sTR5) 5.4GHz 96 Core/192 Thread Processor
AMD Ryzen Threadripper PRO 9995WX (sTR5) 5.4GHz 96 Core/192 Thread Processor
AMD Ryzen Threadripper PRO 9995WX (sTR5) 5.4GHz 96 Core/192 Thread Processor
Couldn't load pickup availability
Overview
AMD's flagship Zen 5 workstation processor brings 96 cores and 192 threads of compute to a single Socket sTR5 platform. The Ryzen Threadripper PRO 9995WX is built for studios, render farms, and engineering teams that have outgrown conventional desktop hardware, delivering server-class parallelism in a workstation form factor.
Boost clocks climb to 5.4 GHz on demand and settle at a 2.5 GHz base across all 96 cores, paired with 384 MB of L3 cache to keep large working sets close to the cores. Eight channels of DDR5 RDIMM memory running at up to 6400 MT/s feed the chip, while 148 native PCIe 5.0 lanes connect every GPU, NVMe drive, and accelerator your workstation requires.
Built on TSMC's 4 nm process and unlocked for overclocking, the 9995WX combines AMD EXPO memory tuning, Precision Boost Overdrive, and Curve Optimizer for users who want to push the platform further. AMD PRO technologies add enterprise-grade security and manageability with AMD Memory Guard, Secure Processor, Firmware TPM, and DASH support included as standard.
The 9995WX drops into Socket sTR5 motherboards based on the WRX90 and TRX50 chipsets, making it the natural choice for 3D animators, AI researchers, simulation engineers, and post-production studios working on the largest scenes, models, and datasets.
What's in the Box
No CPU cooler included
Specification
Family
AMD Ryzen Threadripper PRO
Series
9000 WX-Series
Model
9995WX
Codename
Shimada Peak
Architecture
Zen 5
Cores
96
Threads
192
Base Clock
2.5 GHz
Max Boost Clock
5.4 GHz
L1 Cache
7680 KB
L2 Cache
96 MB
L3 Cache
384 MB
TDP
350 W
Max Operating Temperature
95 °C
Process
TSMC 4 nm FinFET (CPU) / 6 nm FinFET (I/O Die)
Socket
sTR5
Supporting Chipsets
WRX90, TRX50, Pro 695
Memory Type
DDR5 RDIMM
Memory Channels
8
Memory Speed
Up to 6400 MT/s
ECC Support
Yes (Default Enabled)
PCIe Version
PCIe 5.0
PCIe Lanes
148 total / 144 usable / 128 PCIe 5.0
Native USB 3.2 Gen 2
4 ports
Native SATA Ports
4
Integrated Graphics
None (discrete GPU required)
Unlocked for Overclocking
Yes
Cooler Included
No
MPN
100-000001361
EAN
5054444706429
Barcode
Models
- Drops into Socket sTR5 motherboards based on workstation chipsets including WRX90, TRX50, and Pro 695. Requires DDR5 RDIMM memory and a separate Socket sTR5-compatible CPU cooler. Examples of compatible boards include ASUS Pro WS WRX90E-SAGE SE, ASUS Pro WS TRX50-SAGE WIFI, ASRock WRX90 WS EVO, and GIGABYTE TRX50 AERO D, among others.
